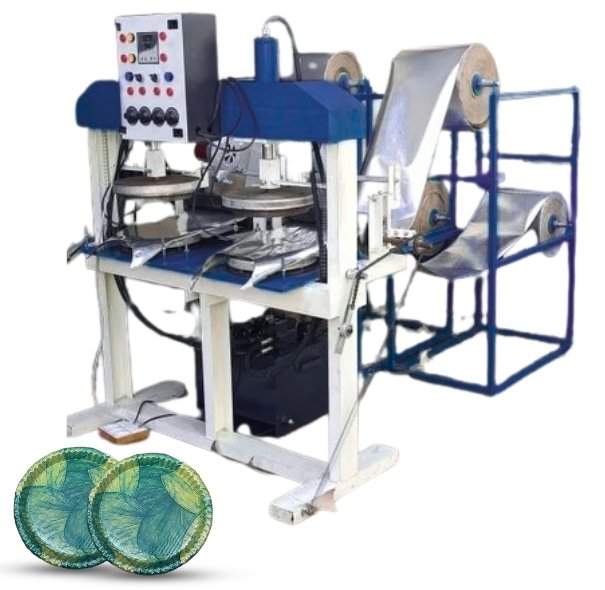

Top-of-the-line fully automatic double die hydraulic paper plate machine. Maximizes output and efficiency using automated roll-feed technology, doubling product throughput.
Top-of-the-line fully automatic double die hydraulic paper plate machine. Maximizes output and efficiency using automated roll-feed technology, doubling product throughput.
RG Machinery offers high-caliber engineering systems custom built to lower your operation overheads while scaling commercial output. Each machine is designed under strict quality control standards ensuring high-yield, continuous manufacturing operation, and maximum lifetime durability.
| Paper Compatibility | Continuous Roll or Cut Piece input |
| Die Size Flexibility | 4" to 14" |
| Daily Production Speed | 50,000 - 60,000 pcs/day |
| Power Requirement | 220V, Single Phase |
| Power Consumption Rate | Approx. 1 unit/hour |
| Oil Tank Capacity | 50 Liters |
| Total Electrical Load | 3 KW |
| Control System | Control Panel |
| Motor Specification | 2 HP AC Motor |
| Machine Net Weight | Approx. 300 KG |
| Operational Space Required | 10 ft x 15 ft |
| Counting System | Manual |
